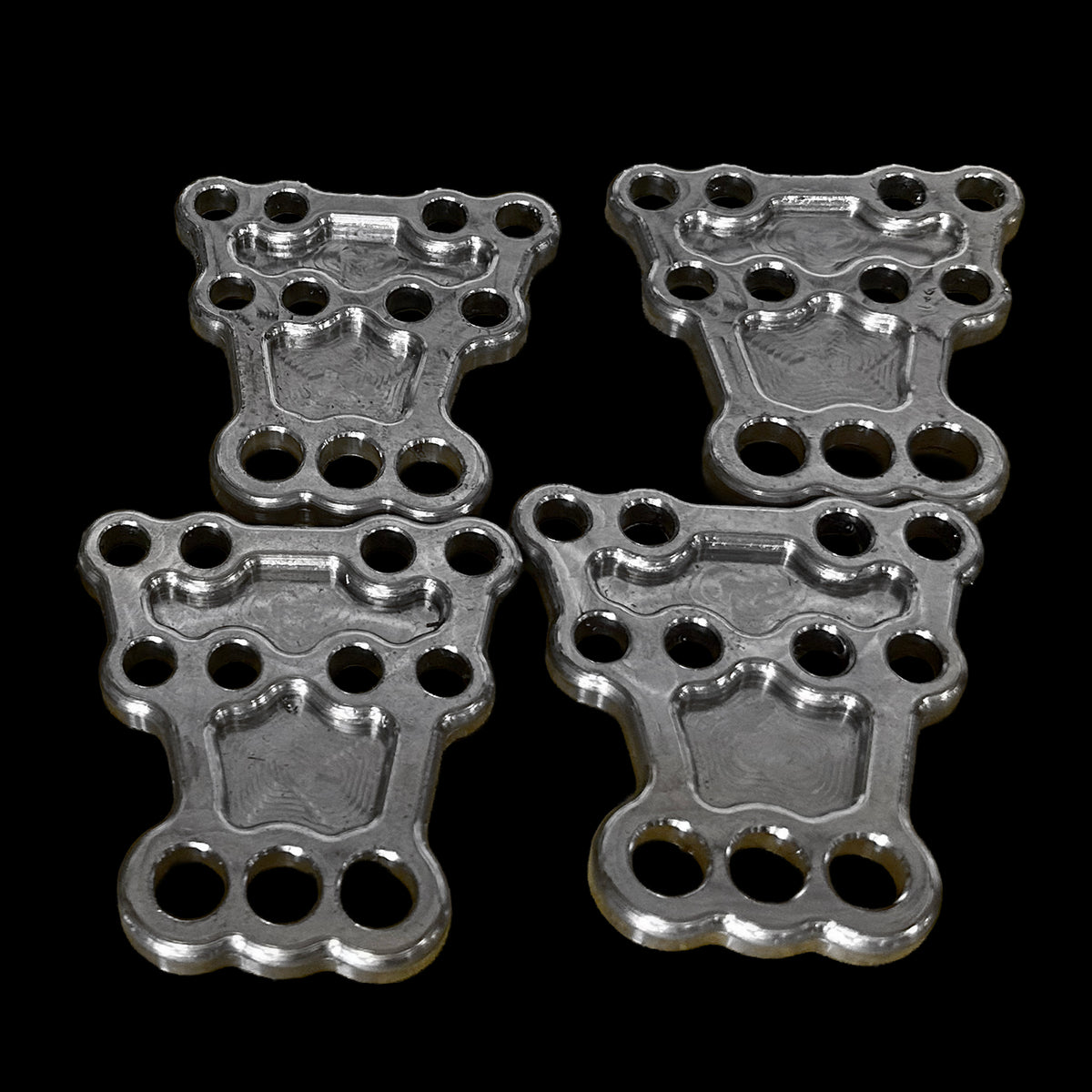

Standard Titanium Pucks (Set of 4)

Grade 5 Titanium Indexable 4-Link Pucks

Built to be lightweight, incredibly durable, and secure under serious load, Fabra Kadabra Indexable Pucks are CNC machined exclusively from Grade 5 6Al-4V titanium.

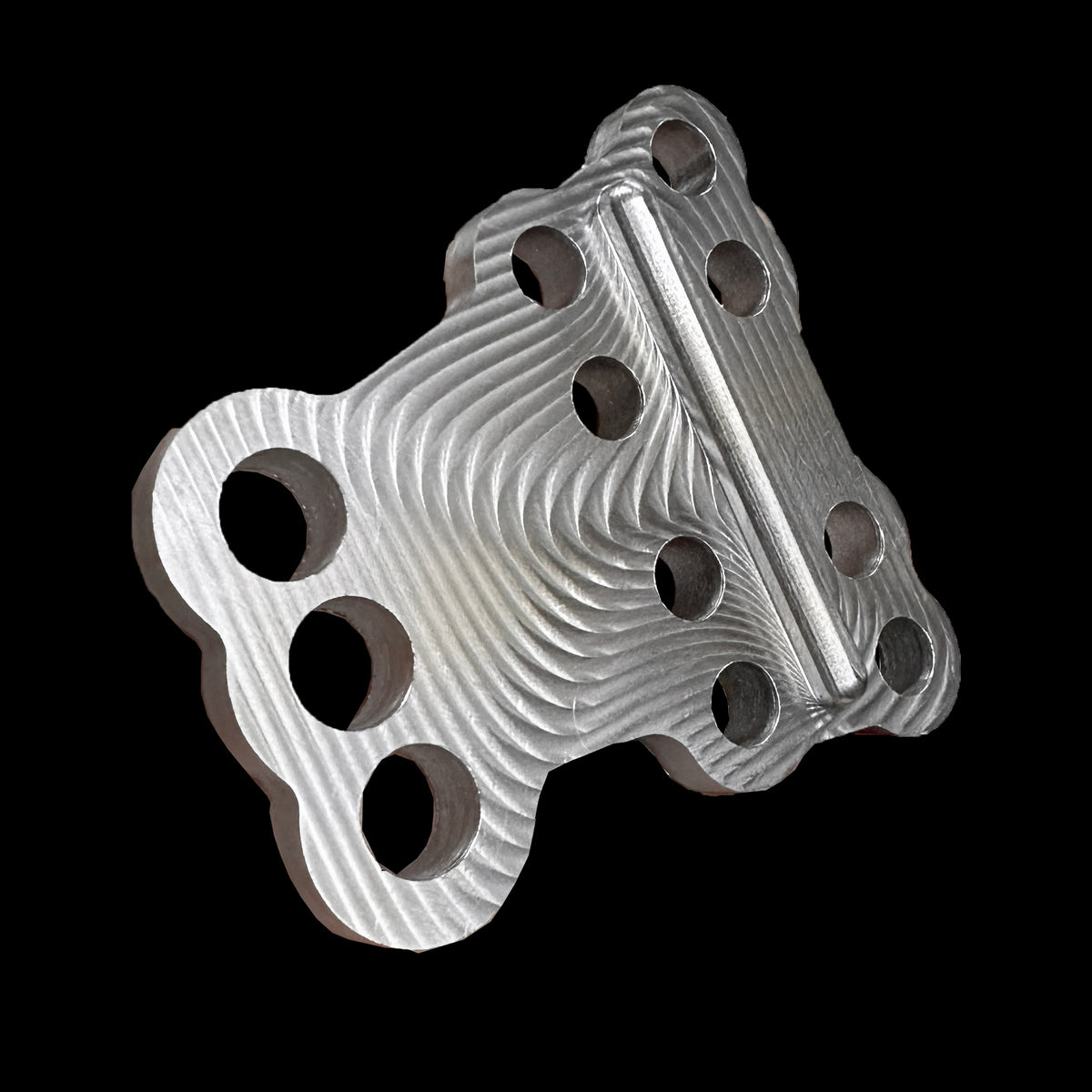

Each puck is machined from 1/2" thick titanium with a finished thickness of 3/8" and a 1/8" receiver groove. and features a 1/2" mounting hole for the 4-link bar rod end. The puck interfaces with the main bracket through a male groove on the back and is secured with four 3/8" bolts.

Four-Bolt Locking Design

Rather than relying on a minimal number of fasteners to secure the puck, our design uses four 3/8" bolts, with two bolts positioned on each side of the male locating groove.

This arrangement provides a robust mechanical connection between the puck and main bracket while the machined groove positively locates the puck in the bracket.

The result is a compact, lightweight adjustment system designed for the loads seen in serious drag racing applications.

We recommend only using NAS bolts with these brackets. The shank of the bolt before the thread should interface with both pucks and bracket (usually 1.5").

Features

-CNC machined from Grade 5 6Al-4V titanium

-3/8" thick

-1/2" 4-link bar mounting hole

-Secured by four 3/8" bolts

-Two fasteners positioned on each side of the locating groove

-Machined male groove positively locates the puck in the main bracket

-Lightweight titanium construction

-Extremely durable and corrosion resistant

-Designed specifically for the Fabra Kadabra Bolt-In 4-Link Bracket System

Please Note: These pucks are sold separately from our Custom Bolt-In 4-Link Brackets, allowing you to select the puck style that best suits your suspension setup.
